Nanocrystalline Ribbon and Core

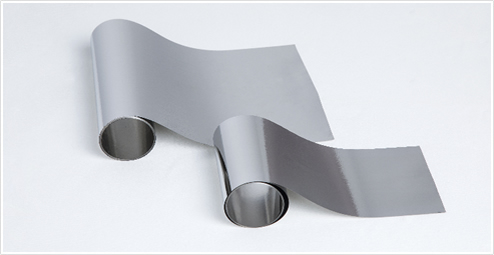

The Fe-based nanocrystalline ribbon is produced by ultra-rapid solidification technology from molten steel with a cooling rate of about 106 m/s. Compared with traditional materials, it has high magnetic permeability and low loss, and is an excellent soft magnetic material. It can replace ferrites as a common mode choke, electronic transformer, etc., which can greatly improve the efficiency of the transformer, reduce the size, reduce the loss, and reduce the costs. It can also be applied to emerging fields such as automotive electronics and wireless charging. The company is the first domestic company to achieve mass production of ribbon thickness of 14μm.
Nanocrystalline Ultra-thin Ribbon Physical Properties
|
Curie Temperature
|
Crystallization Temperature
|
Saturation Magnetostriction
|
Density
|
Resistivity
|
Operating Temperature Range
|
|
570℃
|
520℃
|
＜2×10-6
|
7.2g/cm3
|
130μΩ·cm
|
-50℃~180℃
|
Nanocrystalline Ultra-thin Ribbon Magnetic Properties
|
Initial Permeability μi
|
Coercivity Hc
|
Core Loss P （100kHz，0.1T）
|
Saturation Magnetic Induction Strength Bs
|
Remanence Br
|
Operating Temperature Range
|
|
＞8×104
|
＜0.8A/m
|
＜20W/kg
|
1.25T
|
0.5~0.8T
|
-50℃~180℃
|
Nanocrystalline Ultra-thin Ribbon Thickness and Width Specifications
Strip Thickness Specifications
|
YNB20
|
19±1μm
|
YNB18
|
17±1μm
|
YNB16
|
15±1μm
|
YNB14
|
13±1μm
|
Strip Width Specifications
|
YNB092YD
|
92±0.5mm
|
YNB102YD
|
102±0.5mm
|
YNB122YD
|
122±0.5mm
|
Application of Nanocrystalline Core
|
Nanocrystalline core is made of nanocrystalline ribbon through winding, annealing, impregnation and cutting. Common mode choke, current transformers and other products made from nanocrystalline cores are mainly used in household appliances, consumer electronics, photovoltaic inverters, new energy vehicles, smart power grids and other fields.
|
