Amorphous Alloy Ribbon

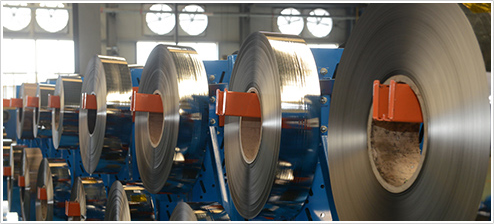

Amorphous alloy, also known as "liquid metal or metallic glass", is a new type of soft magnetic alloy material, mainly containing iron, silicon, boron and other elements. The manufacturing process of its main products, amorphous alloy thin ribbon, is to use the rapid cooling technology. The alloy molten liquid is cooled at 10⁶℃ per second, forming a thickness of about 0.03mm amorphous alloy thin ribbon, leaving the physical state a disordered amorphous arrangement of metal atoms. Thanks to the special atomic structure formed by the above extreme production process, the amorphous alloy has excellent properties such as low coercivity, high permeability, high resistivity, high temperature corrosion resistance and high toughness.

Technical Specifications

type of ribbon	saturation flux density（T）	densityρ （g/cm3）	the Curie temperature（℃）	crystallization temperature （℃）	specific resistance （μΩ*cm）	magnetostriction coefficient（*10^-6）	Vickers hardness (50gload)
AYFA-A	1.56	7.20	404	524	137	27	877
AYFA-M	1.60	7.25	394	516	114	27	841
AYFA-N	1.62	7.27	385	469	125	30	810

Physical Specifications

type of ribbon	thickness (μm)	width （mm）	width allowance（mm） mm	Coefficient of laminated（%）（mm）	Unit of iron lossPs1.3/50（w/kg）	excitation power Ss1.3/50（VA/kg）
AYFA-A	25±2	100-240	±0.5	≥88	≤0.085	≤0.013
AYFA-M					≤0.085	≤0.013
AYFA-N					≤0.085	≤0.013

Typical Applications

1.Reactors for inverters, transformer cores ;
2.Wide constant inductance core, PFC inductance core
3.Amorphous electromagnetic shielding foil for digital electronics
